Charger fuse NH
Items:
0
004110809
NHU01XL/150 aR 50A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 8W
- Power dissipation (W):
- 17W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 280
004110810
NHU01XL/150 aR 63A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 9W
- Power dissipation (W):
- 19W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 500
004110811
NHU01XL/150 aR 80A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 13W
- Power dissipation (W):
- 28W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 770
004110812
NHU01XL/150 aR 100A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 10W
- Power dissipation (W):
- 25W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 2000
004110813
NHU01XL/150 aR 125A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 12W
- Power dissipation (W):
- 31W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 3300
004110814
NHU01XL/150 aR 160A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 15W
- Power dissipation (W):
- 38W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 5800
004110815
NHU01XL/150 aR 200A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 18W
- Power dissipation (W):
- 46W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 10500
004110816
NHU01XL/150 aR 250A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 23W
- Power dissipation (W):
- 62W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 16200
004110817
NHU01XL/150 aR 300A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 28W
- Power dissipation (W):
- 76W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 22000
004110840

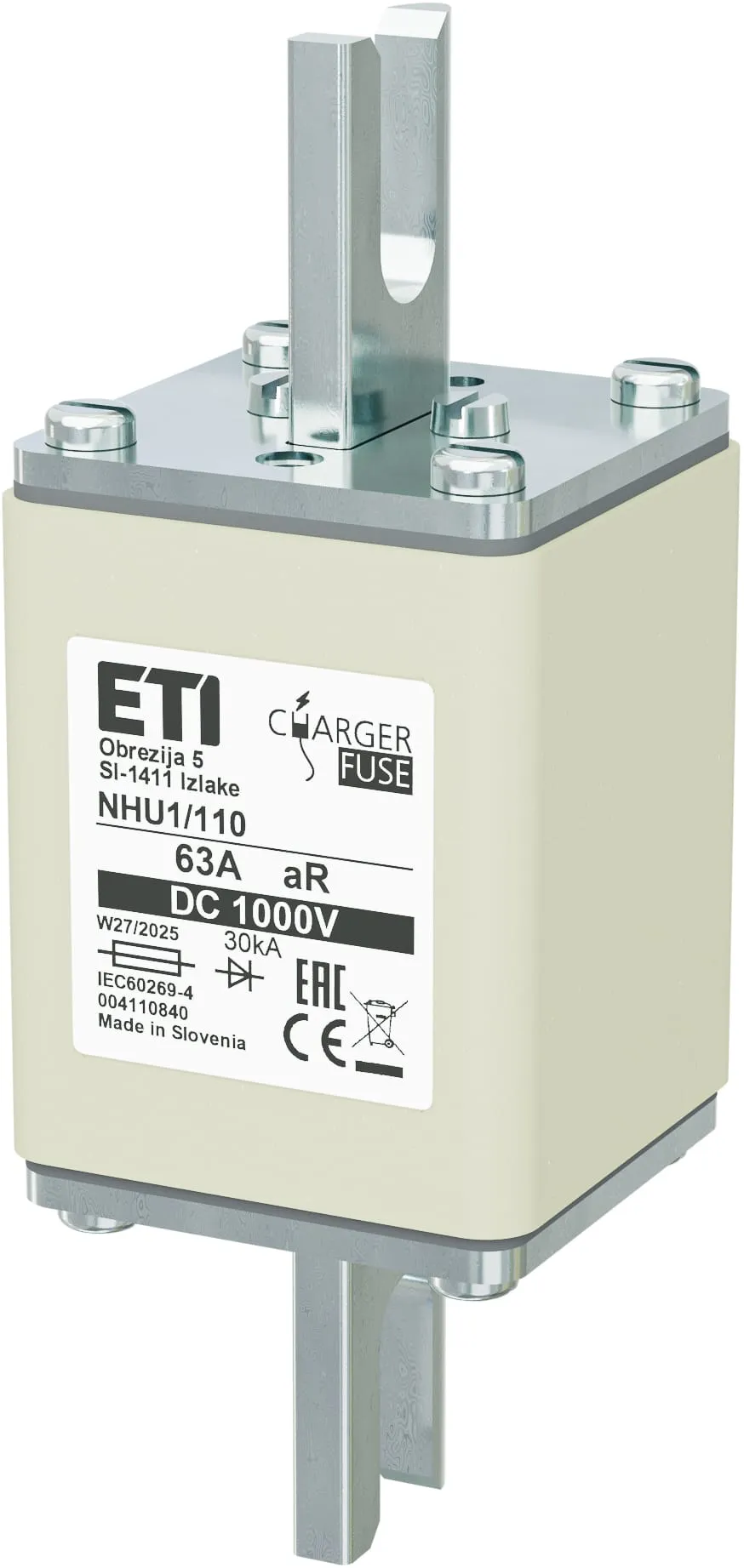

NHU1/110 aR 63A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 5.5W
- Power dissipation (W):
- 12.9W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 200
004110841
NHU1/110 aR 80A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 6.9W
- Power dissipation (W):
- 17.1W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 300
004110842
NHU1/110 aR 100A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 9.2W
- Power dissipation (W):
- 24.1W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 500
004110843
NHU1/110 aR 125A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 10.8W
- Power dissipation (W):
- 28.1W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 1000
004110844
NHU1/110 aR 160A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 14.9W
- Power dissipation (W):
- 41.8W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 2000
004110845
NHU1/110 aR 200A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 16.7W
- Power dissipation (W):
- 45.4W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 4000
004110846
NHU1/110 aR 250A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 21W
- Power dissipation (W):
- 53.7W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 9000
004110847

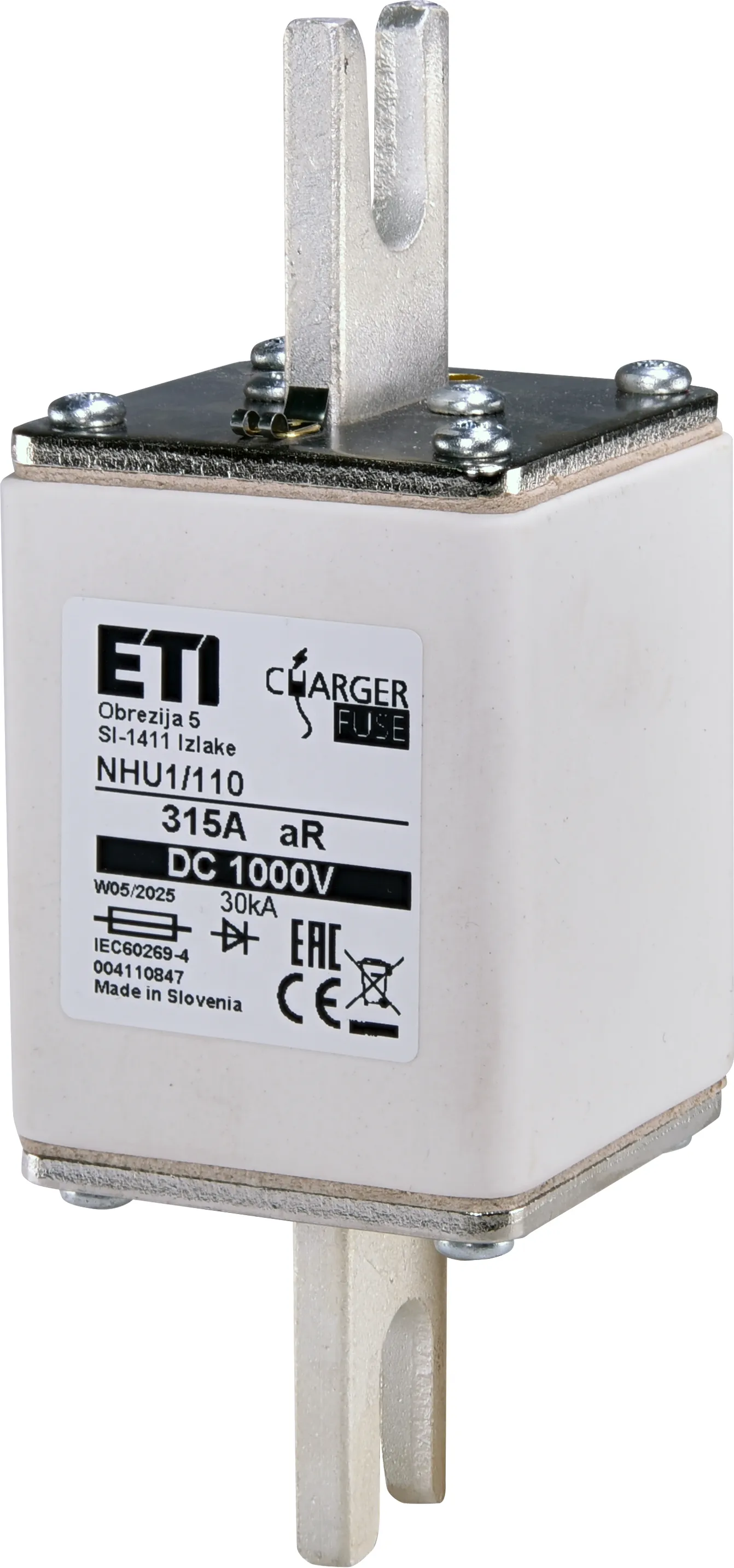

NHU1/110 aR 315A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 25.8W
- Power dissipation (W):
- 66.2W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 16000
004110848
NHU1/110 aR 350A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 25.2W
- Power dissipation (W):
- 69.3W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 23500
004110849

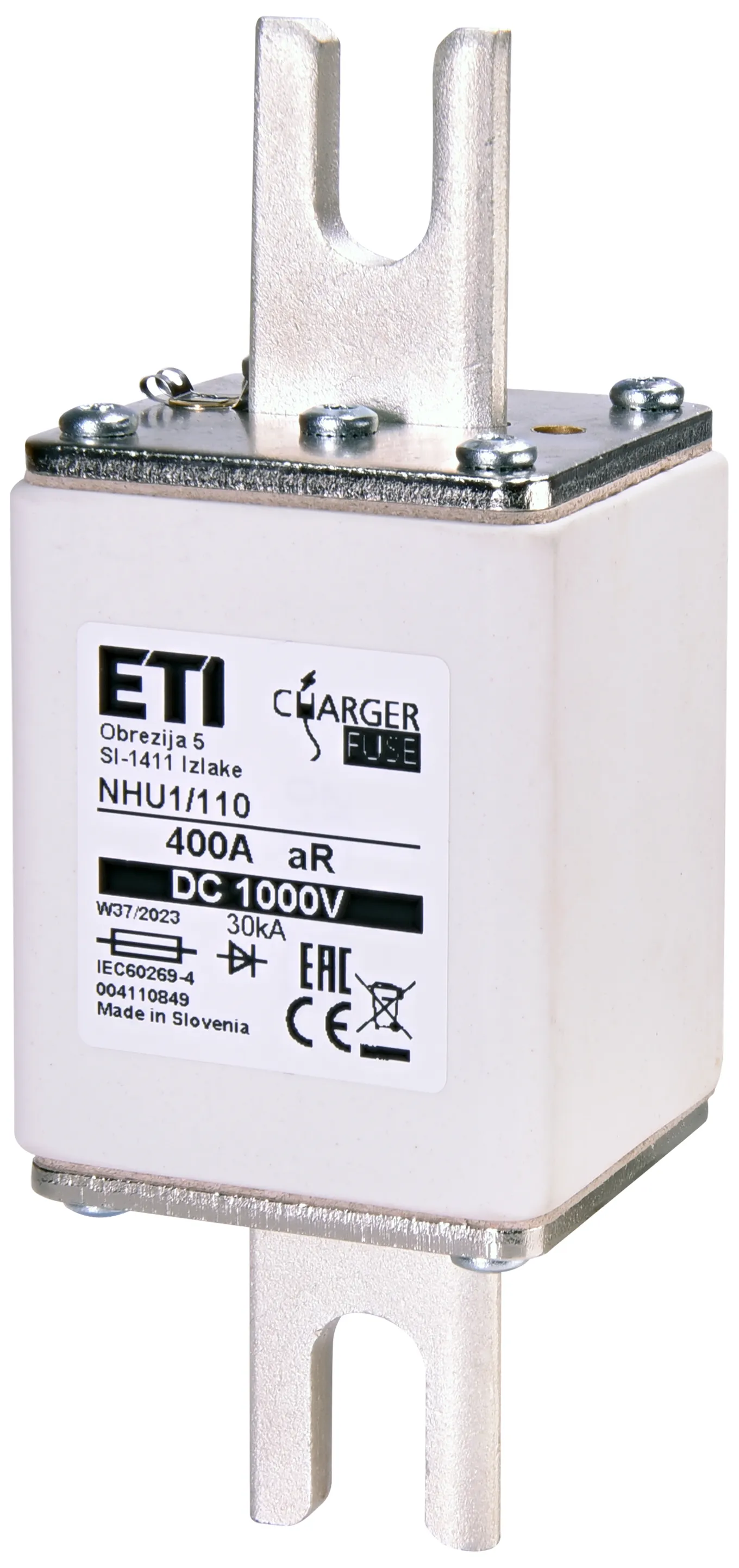

NHU1/110 aR 400A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 28.8W
- Power dissipation (W):
- 83.2W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 31000
004110860
NHU1/110/M aR 63A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 5.5W
- Power dissipation (W):
- 12.9W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 200
004110861

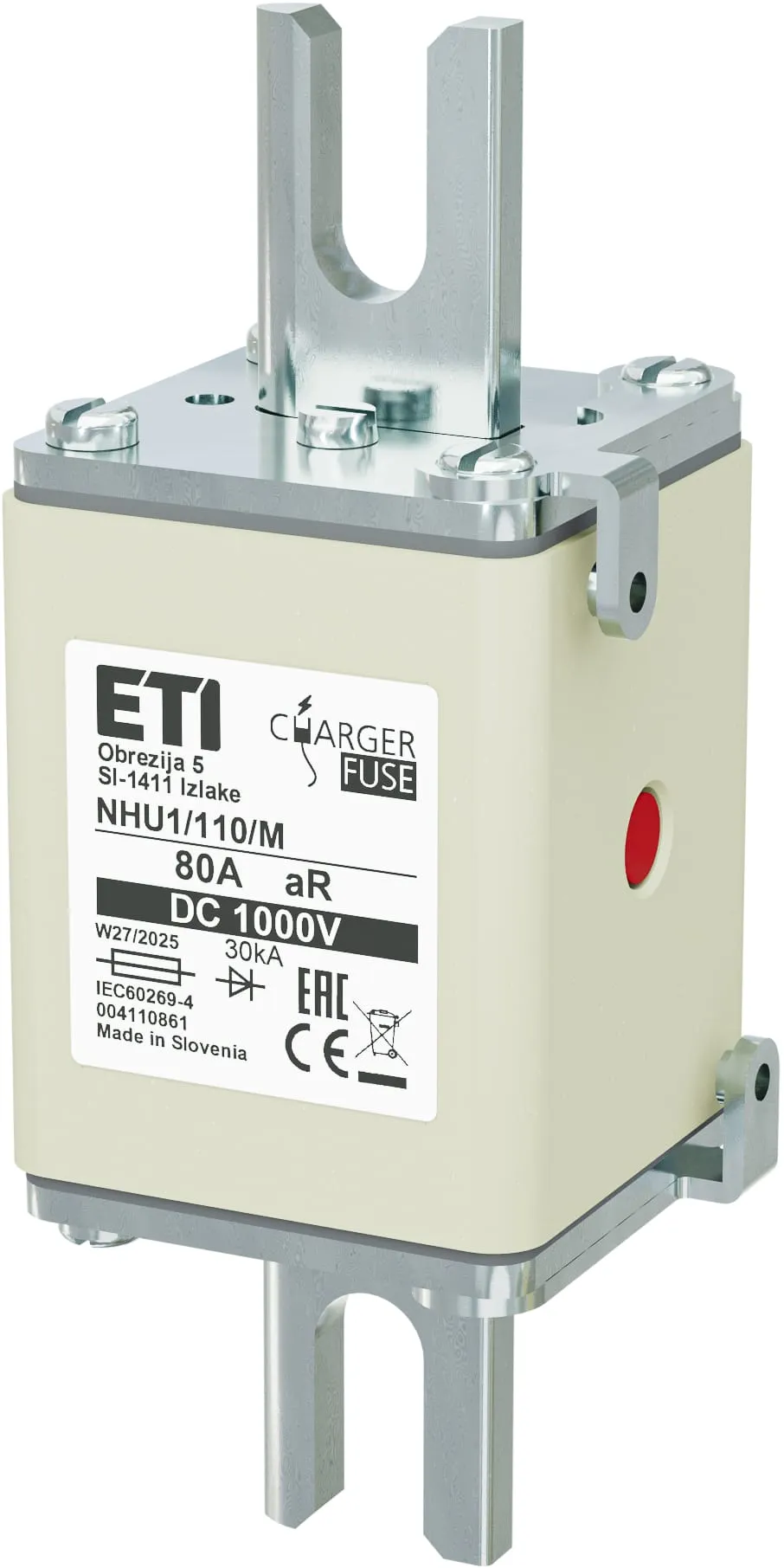

NHU1/110/M aR 80A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 6.9W
- Power dissipation (W):
- 17.1W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 300
004110862
NHU1/110/M aR 100A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 9.2W
- Power dissipation (W):
- 24.1W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 500
004110863
NHU1/110/M aR 125A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 10.8W
- Power dissipation (W):
- 28.1W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 1000
004110864

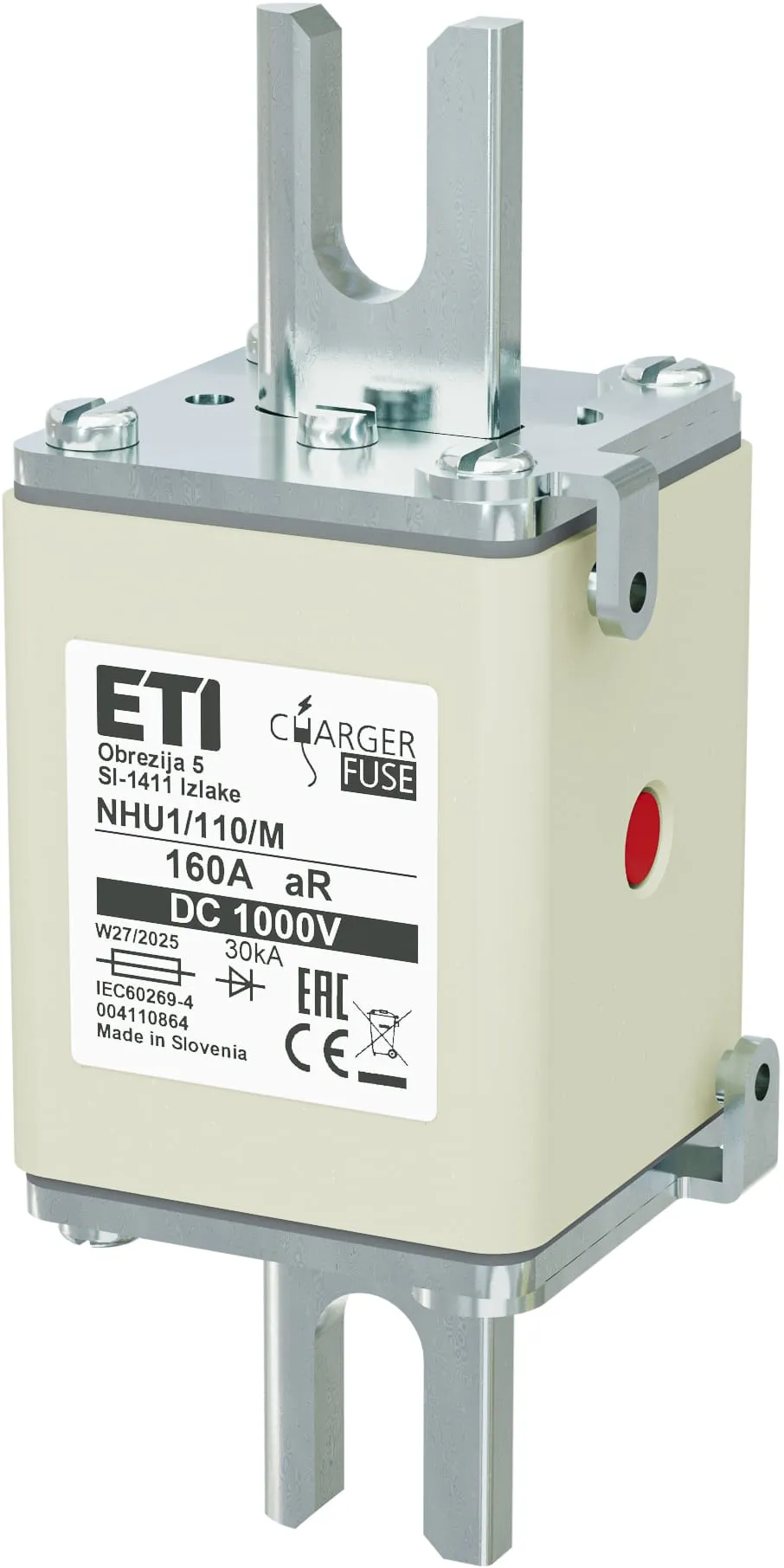

NHU1/110/M aR 160A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 14.9W
- Power dissipation (W):
- 41.8W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 2000
004110865

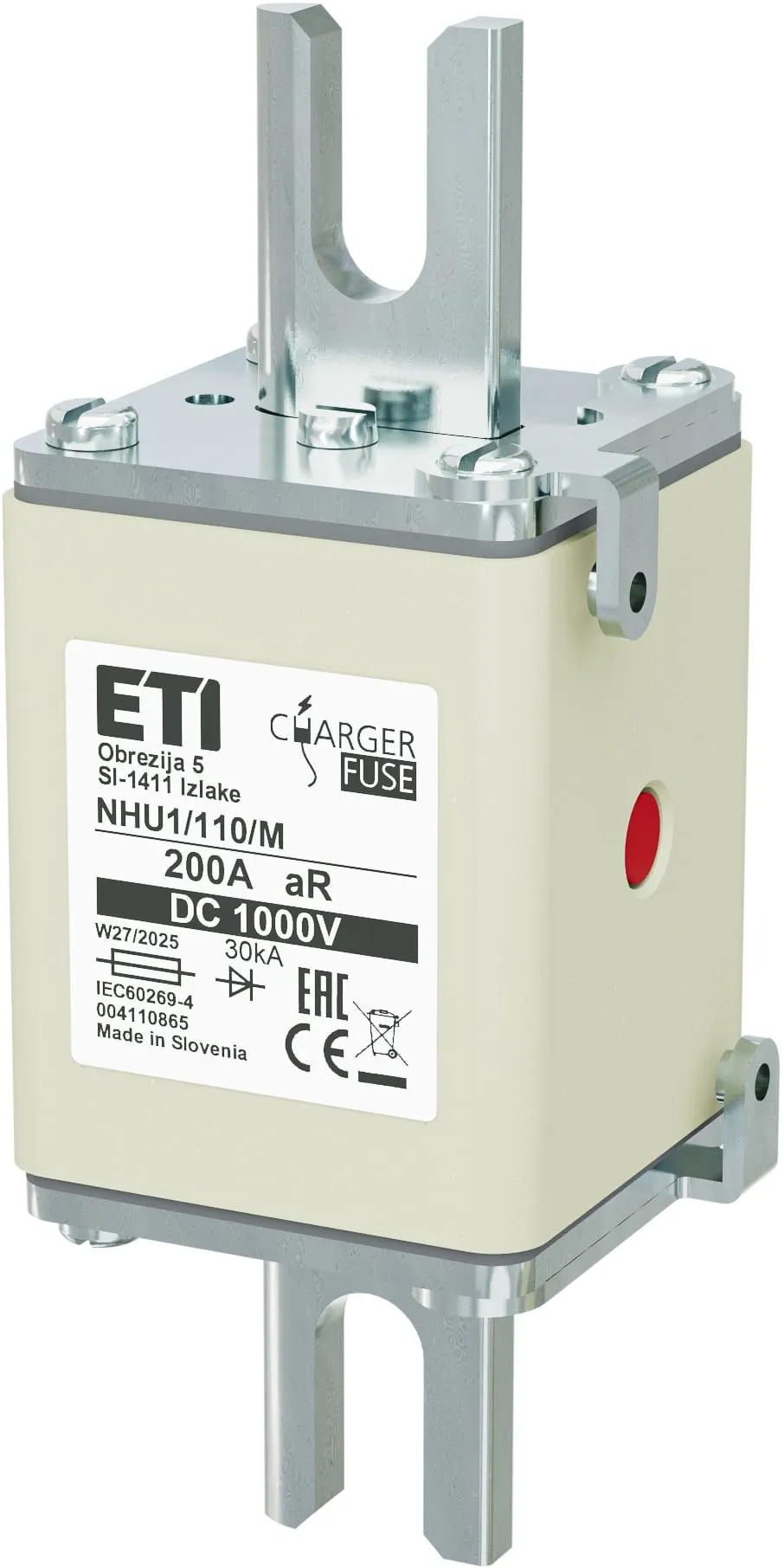

NHU1/110/M aR 200A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 16.7W
- Power dissipation (W):
- 45.4W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 4000
004110866
NHU1/110/M aR 250A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 21W
- Power dissipation (W):
- 53.7W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 9000
004110867

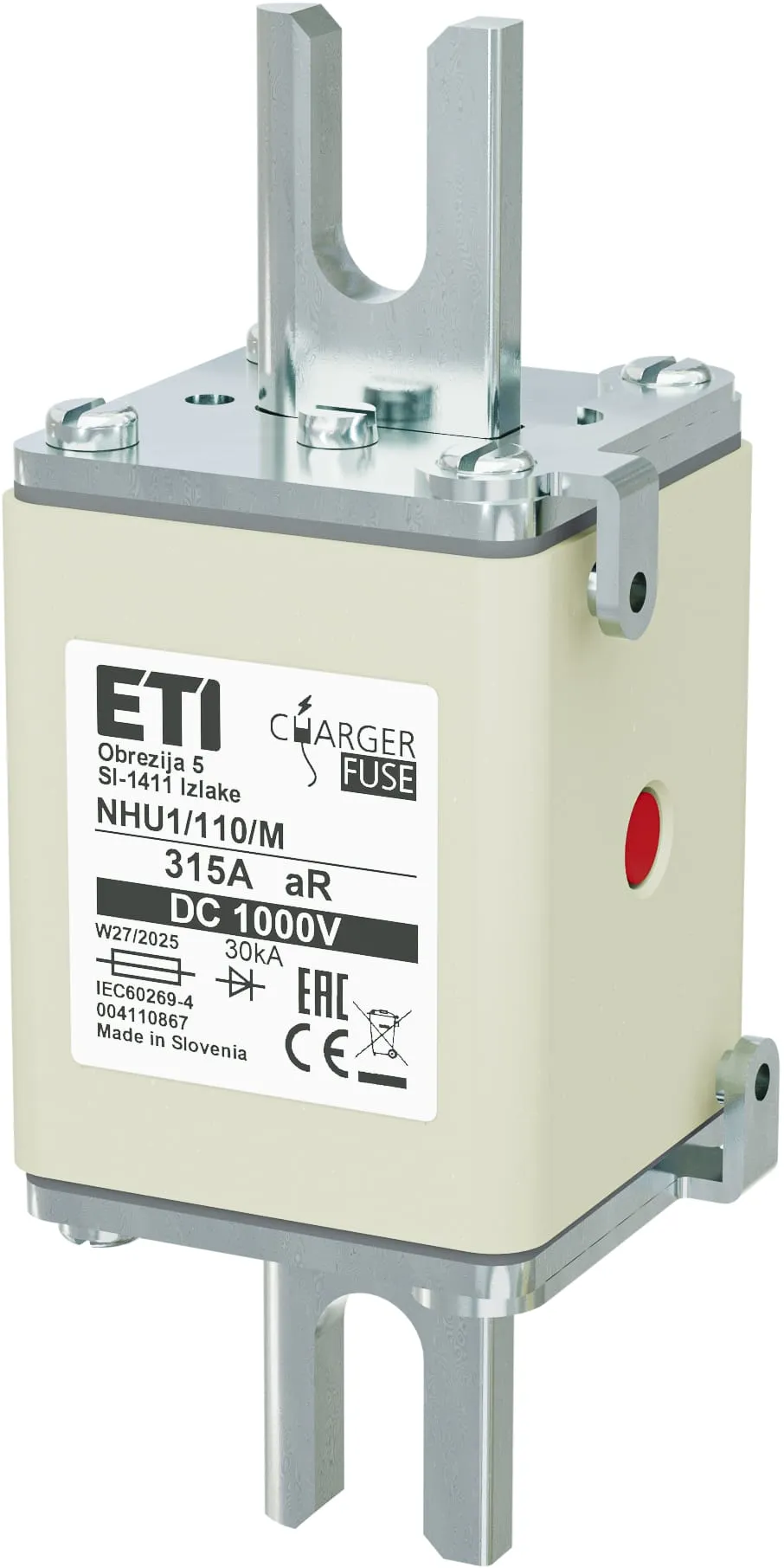

NHU1/110/M aR 315A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 25.8W
- Power dissipation (W):
- 66.2W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 16000
004110868
NHU1/110/M aR 350A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 25.2W
- Power dissipation (W):
- 69.3W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 23500
004110869
NHU1/110/M aR 400A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 28.8W
- Power dissipation (W):
- 83.2W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 31000
004110880
NHU3/110 aR 500A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 37.4W
- Power dissipation (W):
- 109W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 50000
004110881

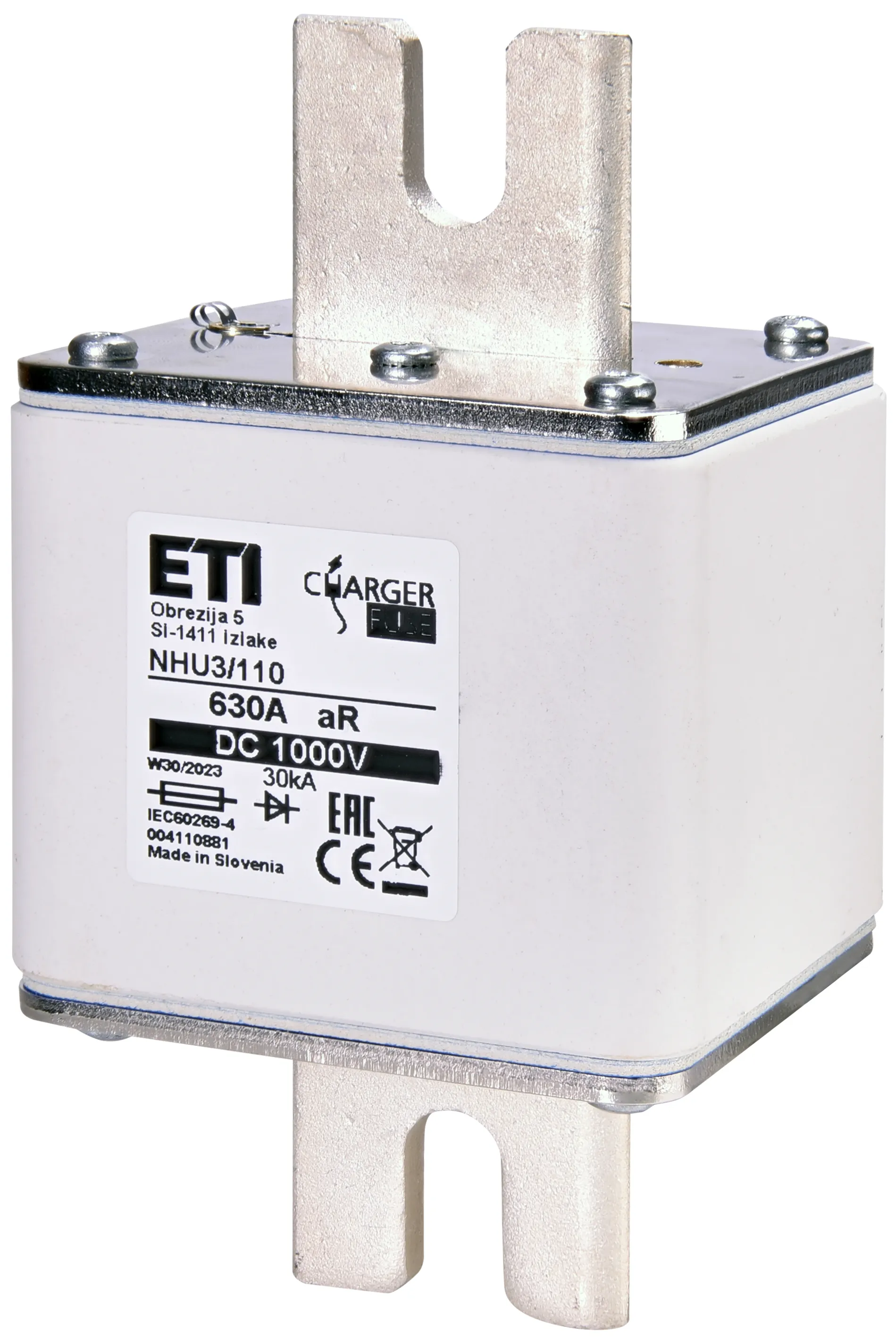

NHU3/110 aR 630A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 48.5W
- Power dissipation (W):
- 153W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 89000
004110890
NHU3/110/M aR 500A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 37.4W
- Power dissipation (W):
- 109W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 50000
004110891

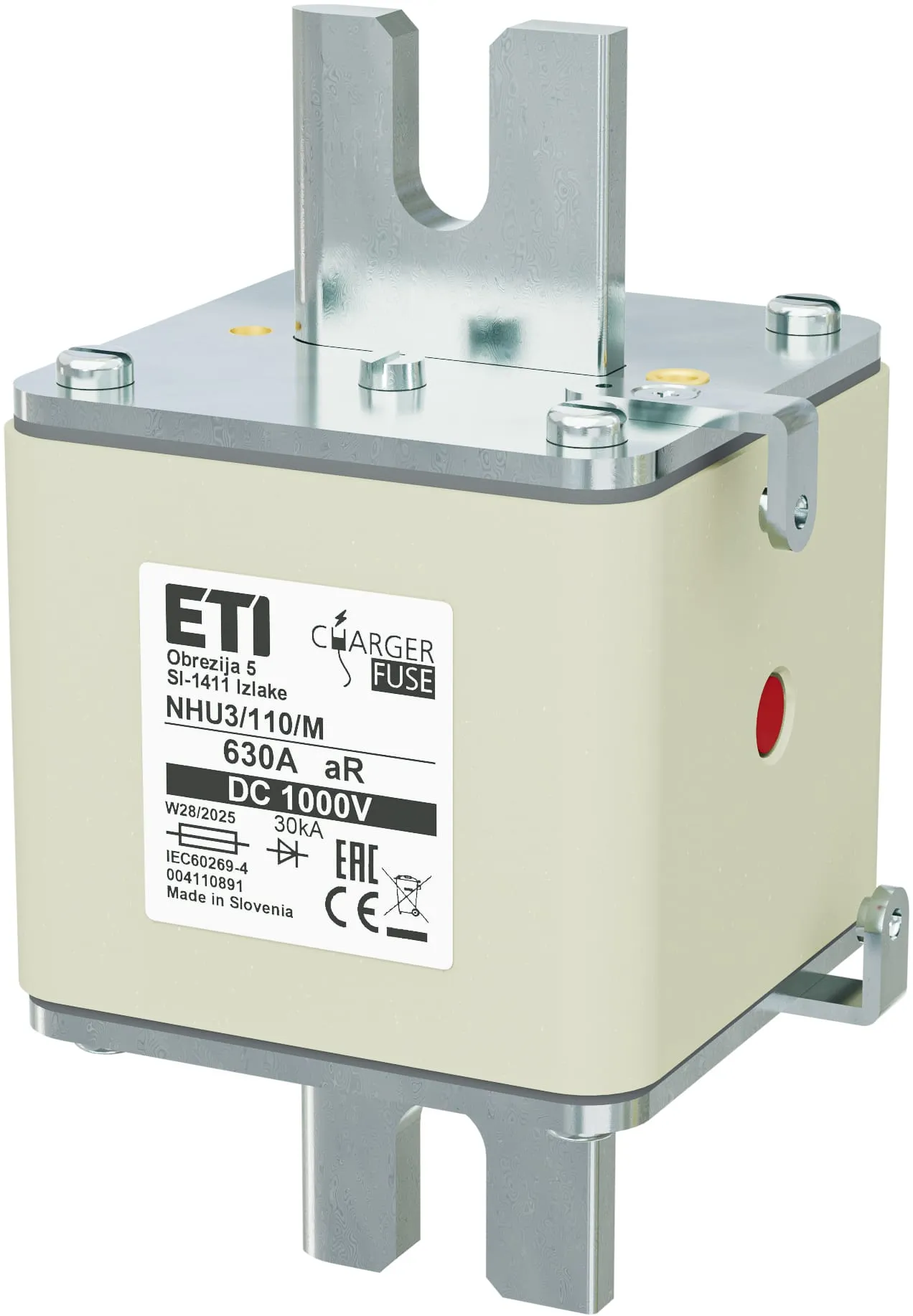

NHU3/110/M aR 630A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 48.5W
- Power dissipation (W):
- 153W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 89000
004110800
NHU3L/150 gPV 300A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 19W
- Power dissipation (W):
- 47W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 30500
004110801
NHU3L/150 gPV 350A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 22W
- Power dissipation (W):
- 54W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 48000
004110802
NHU3L/150 gPV 400A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 24W
- Power dissipation (W):
- 63W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 65300
004110803
NHU3L/150 gPV 450A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 26W
- Power dissipation (W):
- 65W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 89000
004110804
NHU3L/150 gPV 500A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 29W
- Power dissipation (W):
- 72W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 120000
004110805
NHU3L/150 gPV 600A/1000V DC
- Class name:
- Fuse link
- Power dissipation (0,7x In) (W):
- 32W
- Power dissipation (W):
- 83W
- Breaking capacity DC (kA):
- 30kA
- Prearcing joule integral (A2s):
- 350000
